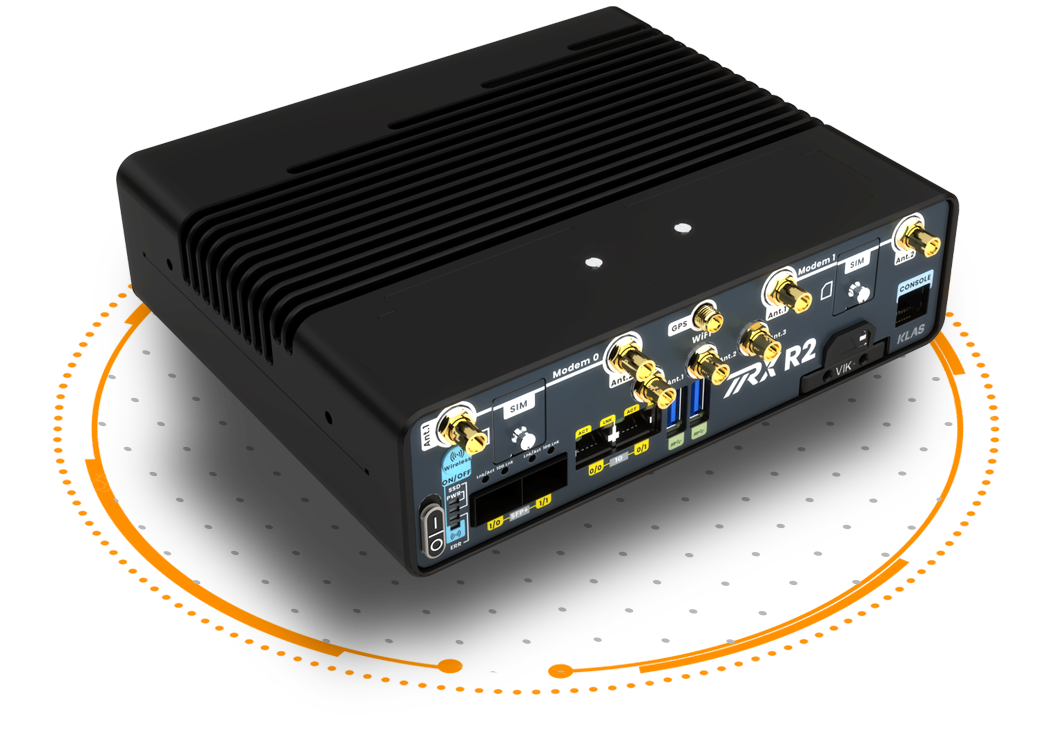

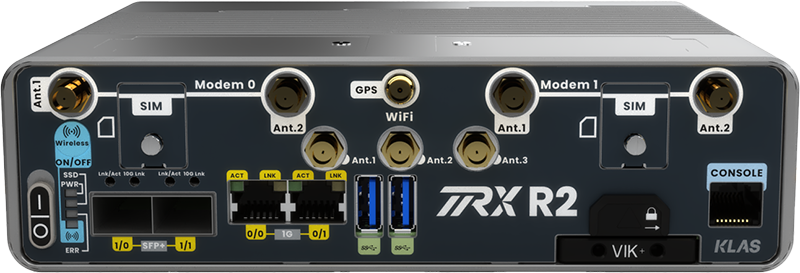

TRX R2

Combined compute and cellular gateway for road vehicles.
TRX R2 from KLAS™ combines both connectivity and local compute so that vehicles have cloud connectivity when they need it, but local processing power for analytics when there is no backhaul.

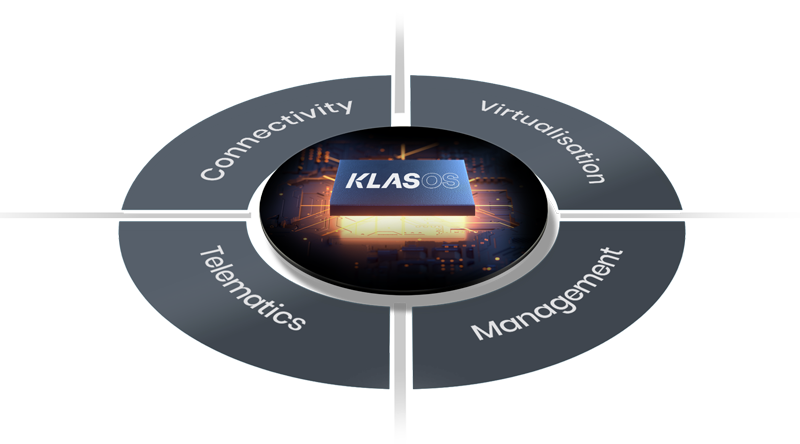

The solution is underpinned by KlasOS Keel, a lightweight hypervisor with SDWAN and the latest Wi-Fi and LTE connectivity.


TRX R2 from KLAS™ is available with two Category 12 modems with downlink speeds of up to 600 Mbps and also has a built-in Wi-Fi interface. Combined with Klas’ proven SDWAN feature embedded in KlasOS Keel, multiple transports can be used simultaneously in a secure and agile way.

A broad range of virtual machines are also supported including VPN technology, WAN optimization, RoIP and video analytics on Intel Atom Denverton 4 or 8 core variants.

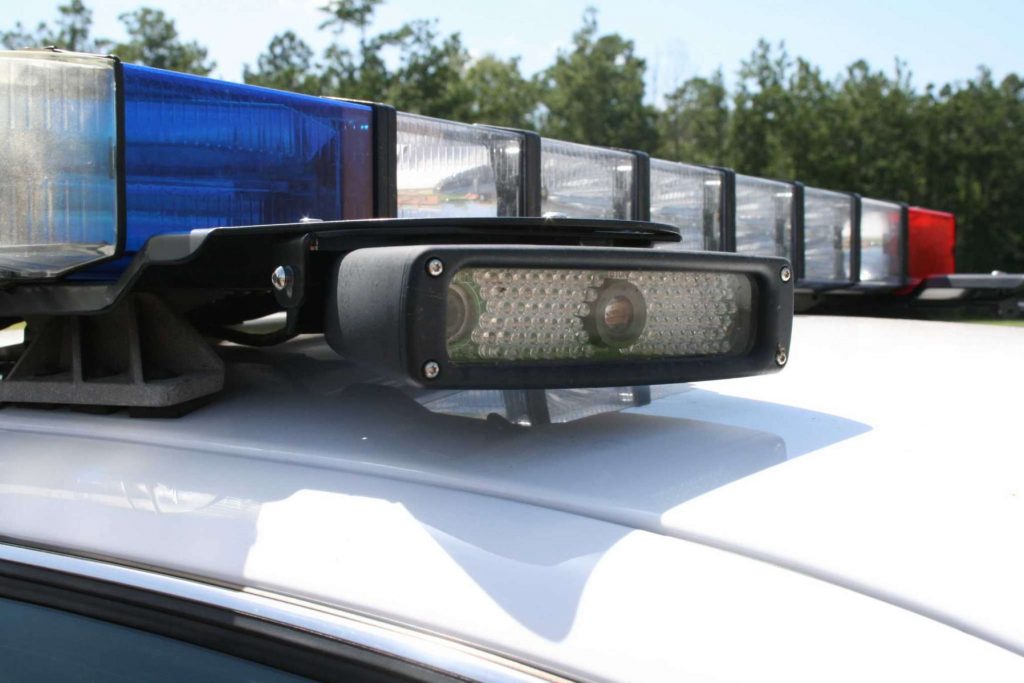

TRX R2 is also a validated, rugged and compact ALPR solution. It provides a simple way to deploy ALPR technology to vehicle and roadside locations

TRX R2 Key Features:

  • CPU Options
    • Intel® Atom™ Denverton C3708 8-Core processor with 1.7  GHz,
    • Intel® Atom™ Denverton C3508 4-Core processor with 1.6  GHz
    • Intel® Atom™ Denverton C3308 2-Core processor with 1.6  GHz, 8MB
    • 8 to 96 GB RAM
  • 4G/LTE Modems
    • Sierra Wireless EM7455 LTE Cat-6 (B1, B2, B3, B4, B5, B7, B12, B13, B20, B25, B26, B29, B30, B41)
    • Sierra Wireless EM7511 LTE Cat-12 (B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66)
    • Sierra Wireless EM7565 LTE Cat-12 (B1-5, B7, B8, B9, B12, B13, B18, B19, B26, B28, B29, B30, B32, B38, B41, B42, B43, B46, B48, B66)
  • IEEE802.11 ac/b/g/n 3×3 MIMO Wi-Fi modem with data rates of 1.3 Gb/s downlink in 2.4/5. Ghz bands
  • 2 x 1 Gb Ethernet ports
  • 2 x 10 Gb SFP ports on 2, 8 core variants
  • 1 x GPS antenna port
  • Voyager module form factor 7.4” W x 6.3” L x 2” H (188 mm x 160 mm x 52 mm)
  • 9 – 36 VDC input
  • 15 – 30 W power consumption
